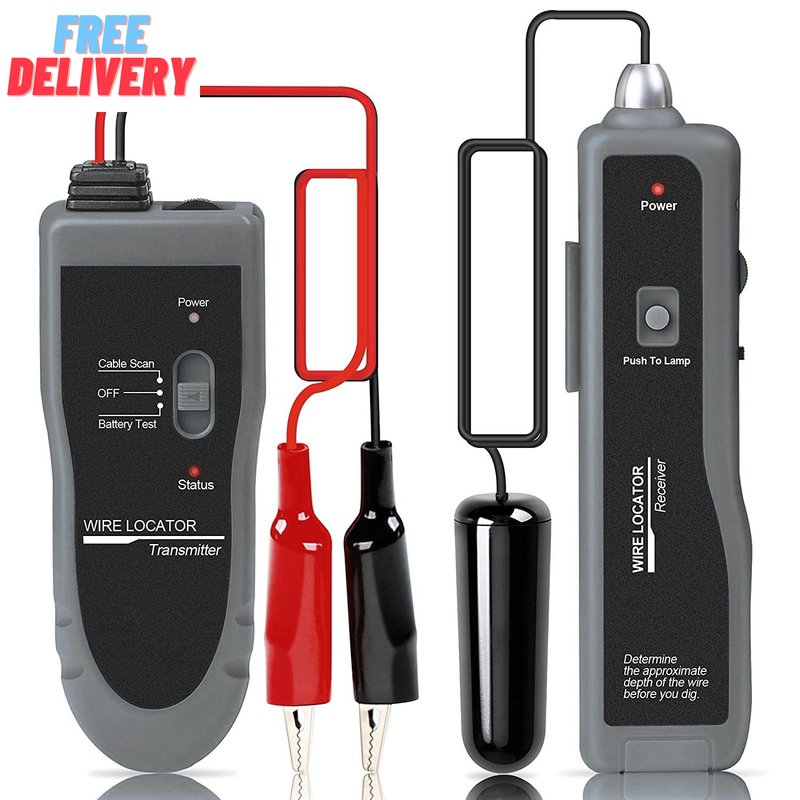

Underground Wire Tracer, Underground Cable Locator with Earphone,

Underground Wire Tracer, Underground Cable Locator with Earphone, Cable Tester for Locate Control Wires Cables Pet Fence Wires Locating Irrigation, Tone Generator Kit & Probe
Description Item model number TL25-2 Power Source Battery Powered Color Grey Country of Origin China Batteries 1 9V batteries required. (included) Package Dimensions 9.65 x 5.98 x 1.93 inches; 14.89 Ounces

【SAVE TIME AND MONEY】TUIREL underground wire locator wire tracer electrical adopts new wireless signal transmission technology, it can quickly locate the breakpoint, short circuit point, and direction of underground cables without damaging the insulation on the cable surface. Detect and repair broken cables by yourself, time and money saver.

【PARAMETER RANGE】Underground wire tracer buried wire locator range of metal wire tracers ranges from 2 feet deep to 2000 feet long. TUIREL cable locator buried wire locator can be used to bury sprinkler valves, wire trackers, dog fence wire break locators, ducts, invisible fence wire break locators, walls buried wire tracers, and electrical wire.

【EXTERNAL HEADPHONES】Underground cable locator buried wire locator with a pair of 3.5mm headphones that can be connected to the receiver headphone jack to improve efficiency in noisy environments. The volume knob can be adjusted to adjust the volume appropriately.

【WHITE LED FLASHLIGHT & POWER SUPPLY】Underground Cable Locator is designed with a white LED flashlight for auxiliary lighting in the dark. Easy to replace. The lower power consumption prolongs the working time. Powered by a 9V electronic technology battery.

【KIND REMINDER】Do not use it on live circuits as it may damage the tester! This device is mainly used to locate cables that are not powered on or in low voltage situations below 24V. Underground wire tracer is only applicable to wires and cables, and not applicable to sprinkler valves!

Product Description How does a circuit breaker finder work? A tone generator sends a signal into the cable so that it can be traced. It is a square wave reverberating a warbling tone. An Inductive Amplifier is a probe tool, working by capacitive coupling from the tone injected on the wire
Before checking for circuit breaker
Please do not use it on a live circuit, so as not to damage the testing instrument!
Determine breakpoint location
Determine the approximate location of the breakpoint by checking the line marks above the ground or observing the operation of invisible fence.
Connecting the underground line finder
Connect the underground line finder to one end of the line and place the sensor on the ground.
The receiver probe is placed on the target line to identify the sound
Mark Line Location
Move the sensor on the ground until the underground line finder detects the location of the line.
Mark the line location and record the depth from the ground. If the line breaks at a point, the depth at that point will be different than other points.
Repeat operation
Mark the line location and record the depth from the ground. If the line breaks at a point, the depth at that point will be different than other points.
In the wire tracing, the volume key is turned to the maximum, the receiver is not silent, the signal tone A on the breakpoint has dropped a lot, initially determine the range of the breakpoint - if you walk slowly, it is very obvious.
Narrow down the range of the breakpoint
In the range where the underground wire locator receives the signal tone A, in the process of gradually turning down the volume key, carefully identify the change of the tone A strength and find the specific location of the breakpoint
When the user underground wire locator, it produces a beep sound to indicate where the wire is Cable Tester for Dog Fence Cables Irrigation Control Wires metal wires metal pipes wires
... For single-core or double-core wire:
Other types of wire that are used as tracers are simple bare copper wire and stranded wire.
Excellent options are copper-clad steel, stainless steel, and coated copper wire.
While bare copper is acceptable,the best options are insulated because they are protected by insulation,safer, and easily traceable. For shielded wire and multi-stranded wire:
Unable to determine breakpoint due to signal interference, but line direction can be tested.
If it is the direction of the shielded wire detection line, the red clip should grip the shielding layer.
Package Includes
1 pc x Emitter
1 pc X Receiver
1 pc x Earphone
1 pc x Kit Bag
1 pc x Instruction Manual
2 pc x 9V Zinc manganese batteries required
Transmitter specifications Tone frequency 200kHz The Max length distance 1000 feet The Max depth distance 2 feet The Max working current Less than 70mA Max signal voltage 15V Signal display Signal tone, Antenna Voltage protection AC 60V/DC 42V Battery type DC9.0V（NEDA 1604/6F22) Dimensions (LxWxD) 1.92x5.31x1.3in
Receiver specifications Frequency 200kHz The Max working current Less than 70mA Battery type DC9.0V（NEDA 1604/6F22) Dimensions (LxWxD) 1.7x6.6x1.06in
